Product

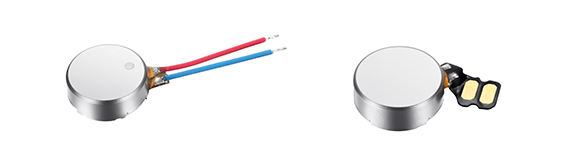

Linear Motor

Application: mobile phones, smart wearable, game controller, beauty products, etc.

Model Size(mm) Rated Voltage(V) Rated Current(mA) Frequency(HZ) Vibration Direction
L0832 Φ8*3.25mm 1.8V RMS AC SINE WAVE 90 mA Max 235±5 HZ Z Axis
L124530F 12*4.5*3mm 1.8V RMS AC SINE WAVE 100 mA Max 235±8 Hz Z Axis
L124035F 12*4*3.55mm 1.8V RMS AC SINE WAVE 70 mA Max 240±15 Hz Z Axis
L124045F 12*4*4.5mm 1.8V RMS AC SINE WAVE 60 mA Max 235±10 Hz Z Axis
L080935F 9*8*3.5mm 0.9 V RMS AC SINE WAVE 145mA Max 170±10 Hz X Axis
